Cáp mạng LAN Alantek USA Cat6 FTP 4 Pair vỏ màu xám đảm bảo độ bền, dẻo và các yêu cầu hiệu suất, thích hợp với mọi công trình
Alantek Cat6 Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit Ethernet. The cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. For the unshielded cable, the 4 twisted pairs are separated by a l exible PE separator and the cable is completed with an Outer Jacket. For the shielded cable, an additional layer of Aluminium Foil covers the 4 twisted pairs.
2. Application:
Alantek USA Cat6 FTPHorizontal wiring, suitable for application up to 10 Gigabit Ethernet.
3. Standards:
Alantek USA Cat6 FTPTIA/EIA 568B, ISO/IEC 11801, UL 444
4. Physical Characteristics:
- Conductor:
Material: Solid Bare Copper
Size: 23 AWG x 4 pairs
Construction: 1/0.56 ± 0.01 mm
- Conductor Insulation:
Material: HDPE
Min. Ave. Thickness: 0.23 mm
Min. Thickness at any point: 0.22 mm
Diameter: 1.03 ± 0.01 mm
- Jacket:
Material: PVC
Min. Ave. Thickness: 0.52 ± 0.02 mm
Min. Thickness at any point: 0.50 mm
Diameter: 6.4 ± 0.2 mm
- Max Tensile Load (Installation): 100 N

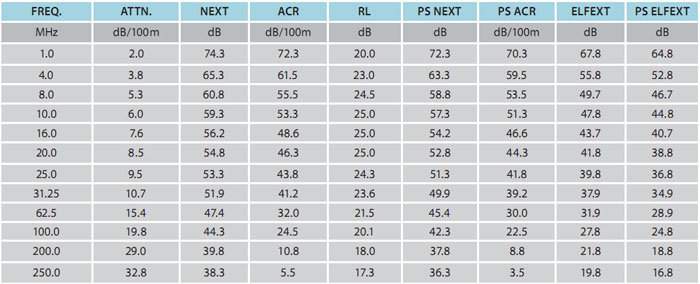

5. Electrical Characteristics:
