Cáp mạng KRONE CAT6 F/FTP 4 pair

ADC Krone cat 6 FTP pair, cáp mạng chống nhiễu krone cat6, Cáp mạng KRONE CAT6 F/FTP 4 pair

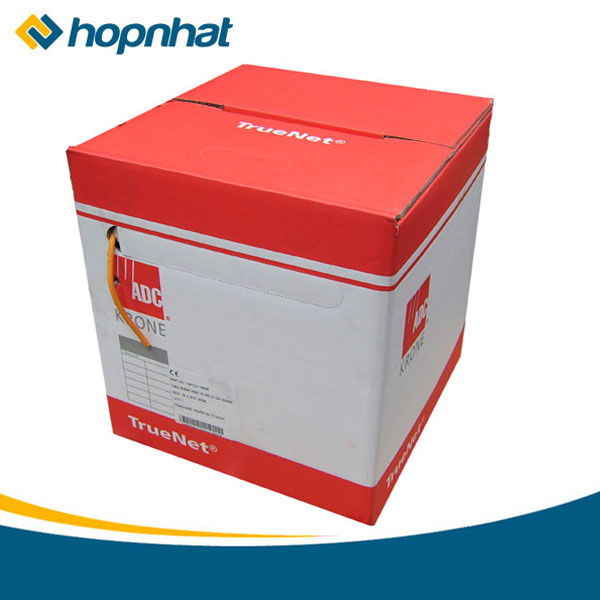

Cáp mạng chống nhiễu KRONE Cat 6 F/FTP 4-Pair LSZH chống cháy (1.000m reel)

Thông tin sản phẩm: KRONE CAT6 F/FTP 4pair

A crucial component of ADC KRONE’s impedance matched TrueNet structured cabling solution. This cable guarantees Category 6 performance ensuring maximum network speed, data throughput and efficiency. This TrueNet LSZH horizontal cable is available
in standard 500m or 1000m and also as 500m shotgun.

Standards:
ISO 11801, EN 50288-2-1, EN 50173,
IEC 61156-5-1, EIA/TIA 568-A and B.

Features
- Performance exceeding Category 6
specifications up to 250MHz
- Ensures zero-bit errors, removing the need
for Ethernet to re-transmit data packets and
ensures data integrity
- Maximimum throughput, reliability and
performance in your IT network
- Covered by the TrueNet System Warranty

Specifications
Electrical Data
Mean impedance: 100 + 5 Ω
Propagation delay difference (skew): < 45 ns
DC resistance: ≤ 187.6 Ω/km
Capacitance unbalance to ground: ≤ 1600 pF/km
Dielectric strength: 700 V AC/1 min
Insulation resistance: ≥ 5000 MΩ x km
Current carrying capacity at 60°C:
- all conductors simultaneously 0.175A
- screen 5A
oupling attenuation:
- from 30 to 100 MHz ≥ 55 dB
- from 100 MHz to 1 GHz ≥ 55 – 20 log f/100

Construction
Nominal outside diameter 6.9mm
Nominal outside diameter (shotgun) 7 x 14.8mm

Environmental
Storage temperature -40°C to +70°C
Operating temperature -20°C to +60°C
Installation temperature 0°C to +50°C (24 hours prior to installation,
store the cable at 20ºC ± 5ºC)
Compliances
Fire rating IEC 60332-1
